STOGELIS – Stogeliai. Tvirtinimo ir sandarinimo elementai

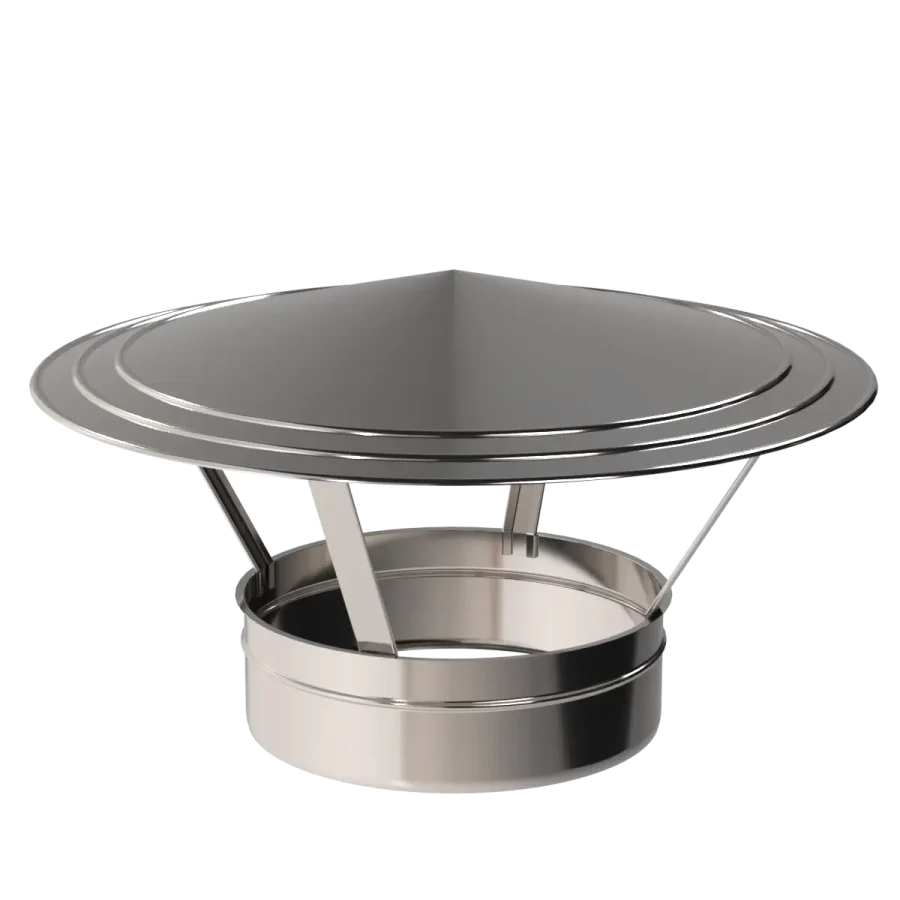

RAIN CAP

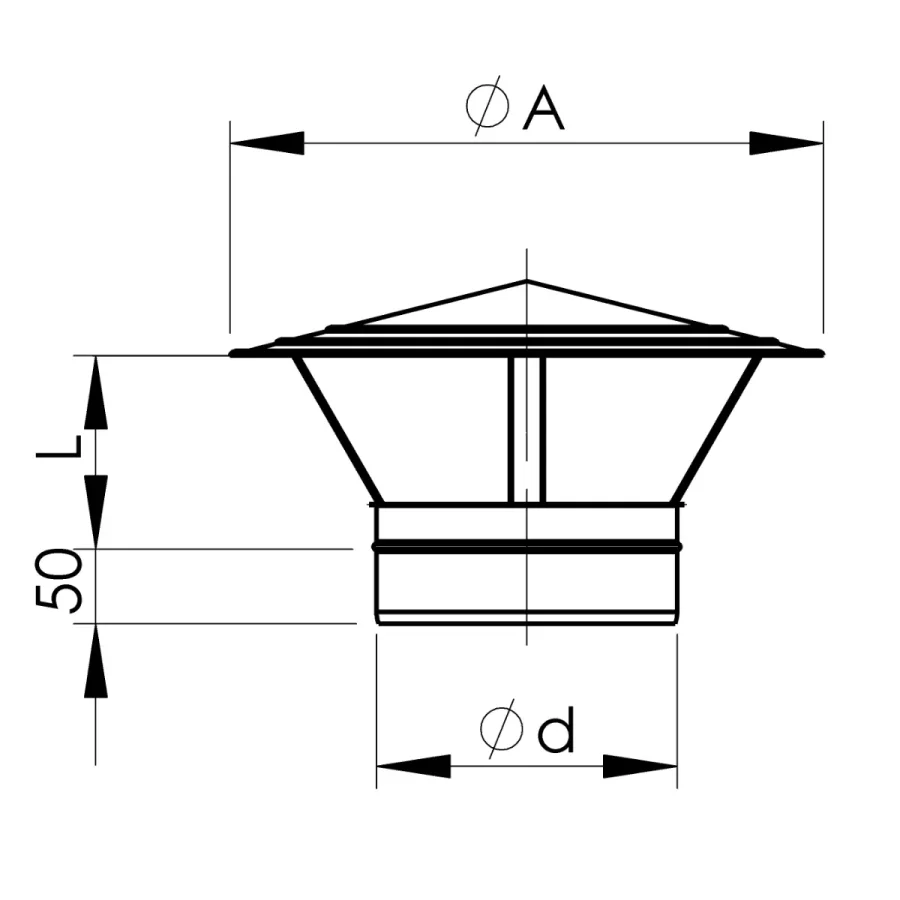

Dimensions / Matmenys / Dimension (Series 3011 - Storm Collar / Rain Cap)
Od	Article No.	ØA (mm)	L (mm)	kilogram
80	9N-3011-0080-000-111-V	155	70	0,26
100	9N-3011-0100-000-111-V	195	70	0,34
115	9N-3011-0115-000-111-V	225	70	0,40
120	9N-3011-0120-000-111-V	235	100	0,43
130	9N-3011-0130-000-111-V	255	100	0,48
150	9N-3011-0150-000-111-V	295	100	0,63
160	9N-3011-0160-000-111-V	310	100	0,69
180	9N-3011-0180-000-111-V	350	130	0,82
200	9N-3011-0200-000-111-V	390	130	0,97
230	9N-3011-0230-000-121-V	450	130	1,49
250	9N-3011-0250-000-121-V	490	150	1,70
280	9N-3011-0280-000-121-V	545	180	2,04
300	9N-3011-0300-000-121-V	585	180	2,40
350	9N-3011-0350-000-121-V	680	210	3,15
400	9N-3011-0400-000-121-V	780	250	4,00
450	9N-3011-0450-000-121-V	875	250	4,94
500	9N-3011-0500-000-121-V	970	350	5,98
550	9N-3011-0550-000-121-V	1070	350	6,60
600	9N-3011-0600-000-131-V	1170	450	11,13

RAIN CAP
